uPvc Profile Machining and Cutting Center

A CNC-controlled production system developed for high-precision processing of PVC profiles. Thanks to its 9-axis servo-controlled motion structure, all required operations can be performed on all surfaces of the profile in a single loading. Milling operations, opening of internal and external water drainage channels, hinge pockets, lock and handle holes, as well as angled and straight cutting operations are automatically applied according to the program. Operations are performed sequentially according to the defined operation sequence, and transition times between operations are minimized.

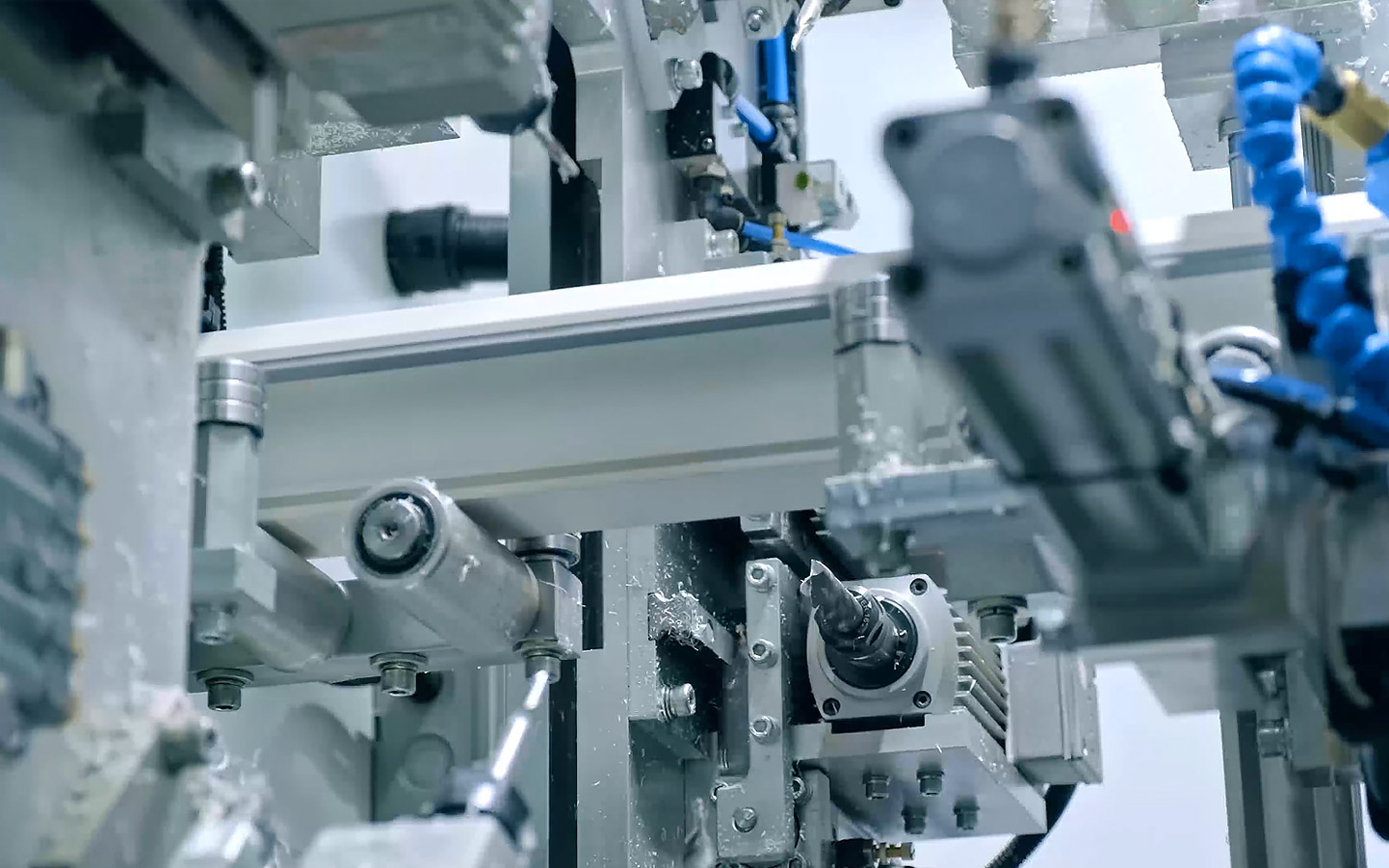

High-speed spindle motors positioned in the servo-controlled milling unit produce precise and repeatable results according to defined machining parameters. All movements are managed by the CNC control system, thereby ensuring dimensional accuracy and process standardization.

The machine consists of three main sections: an input conveyor, a processing and cutting unit, and an output conveyor. Up to 9 profiles can be loaded simultaneously on the input conveyor, and profiles are automatically transferred to the processing cabinet through an integrated robot system.

This structure is designed to create uninterrupted material flow in the production line.

The servo-controlled saw system in the cutting unit can be positioned at angles between 30° and 150° and can perform series cutting operations within the specified angle range. Angular positioning is provided by CNC control, and cutting precision is maintained.

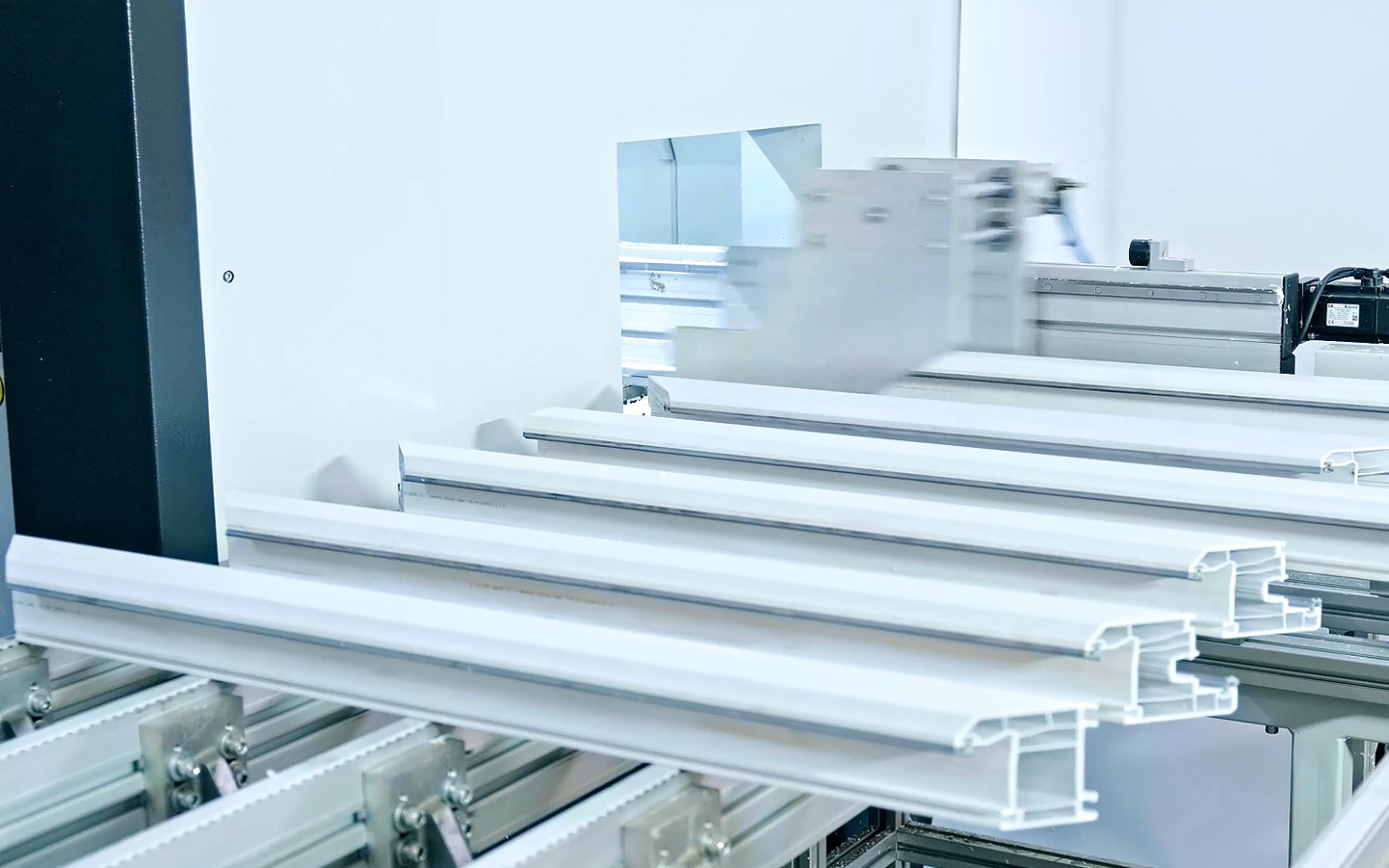

Profiles that have completed processing and cutting operations are transferred to the output conveyor by a robot arm. The profile pushing and sorting mechanism located in the output section ensures that processed profiles are arranged in an orderly manner. This orderly flow enables the operator to systematically carry out labeling and subsequent production stages.

Labels obtained from the barcode printer within the system are applied to the processed profiles. Through this labeling, the welding unit can automatically identify the profile and digital transfer of profile information in the production process is ensured. Thus, profile confusion and time losses due to manual tracking are prevented, and traceability and operational continuity are provided in the production line.
